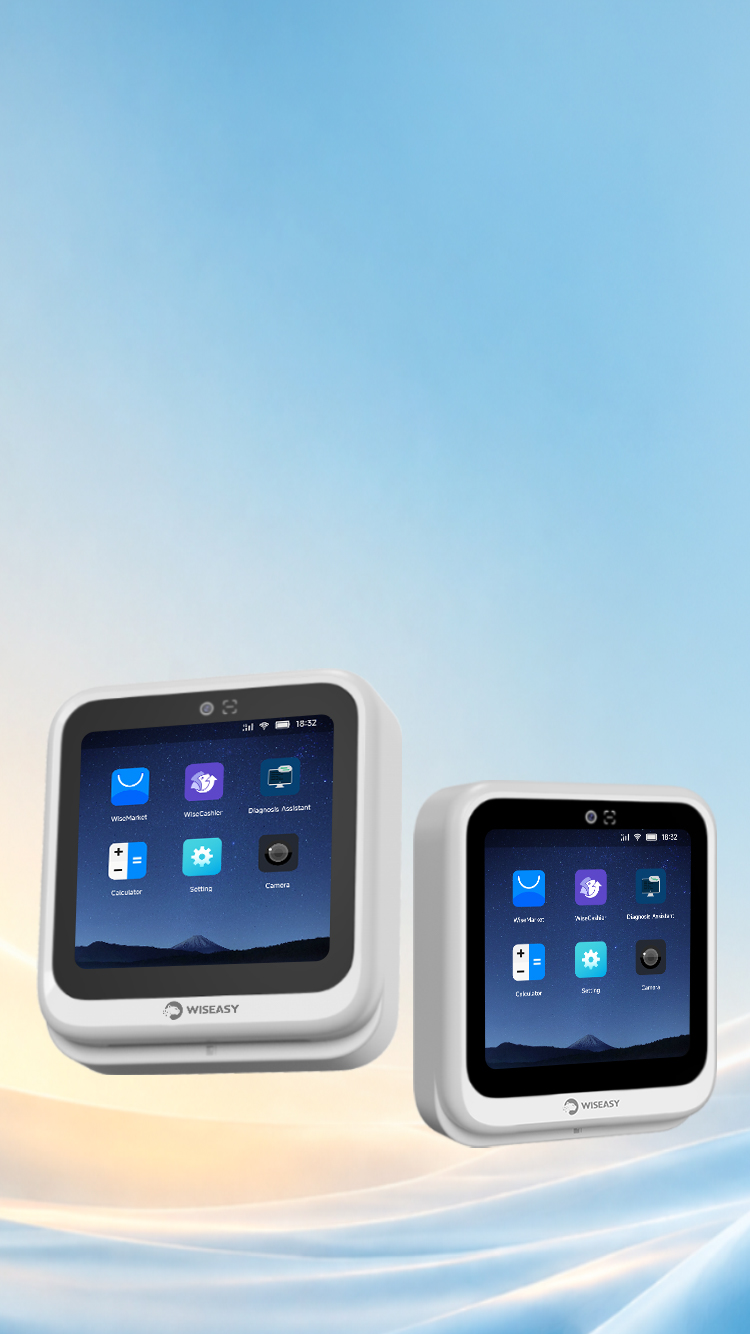

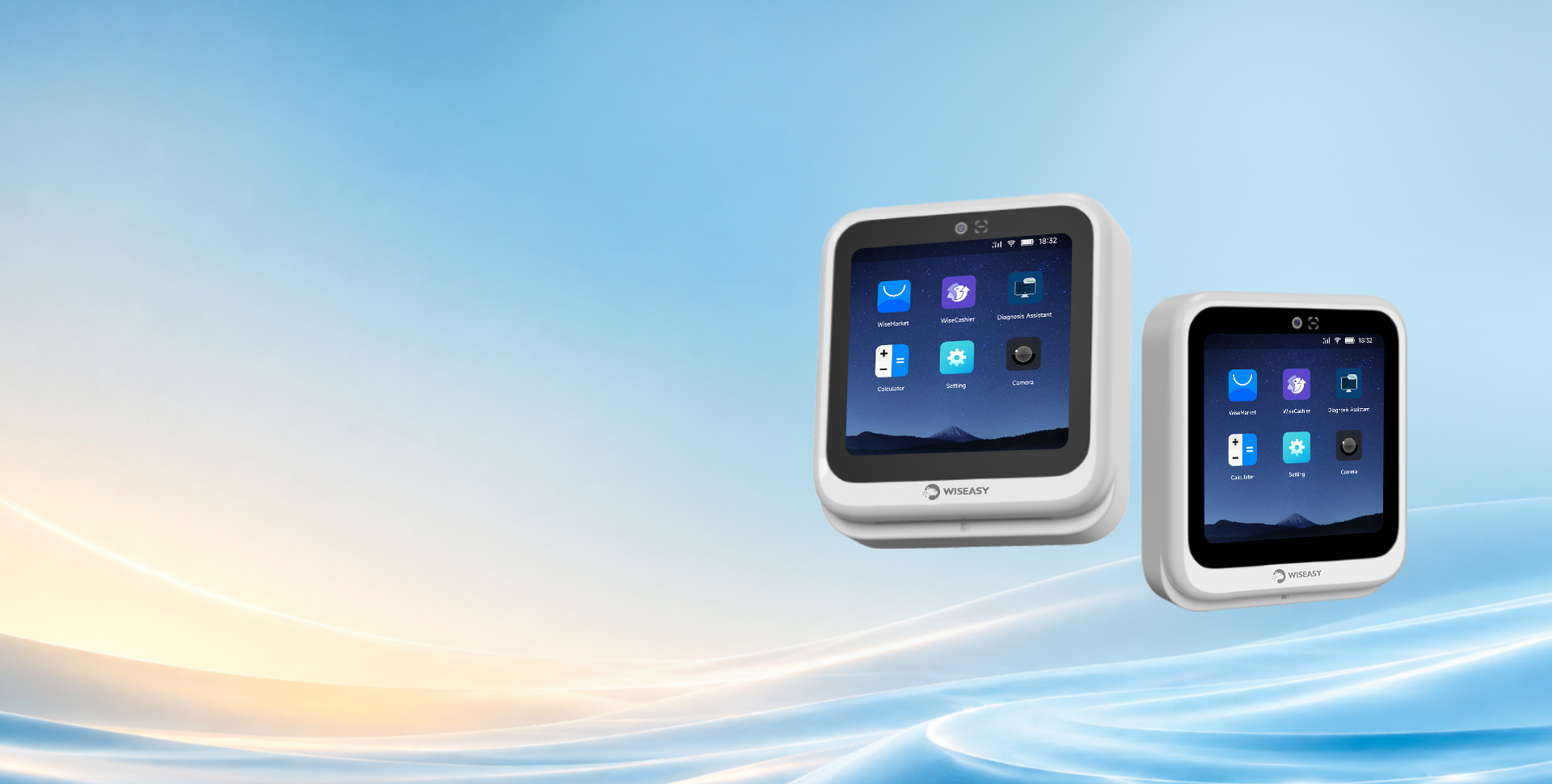

RX SSK RX SSK

WISEASY RX SSK
Self-Service Payment Kit

Small Enough to Fit, Smart Enough to Lead

Contact Experts

Download

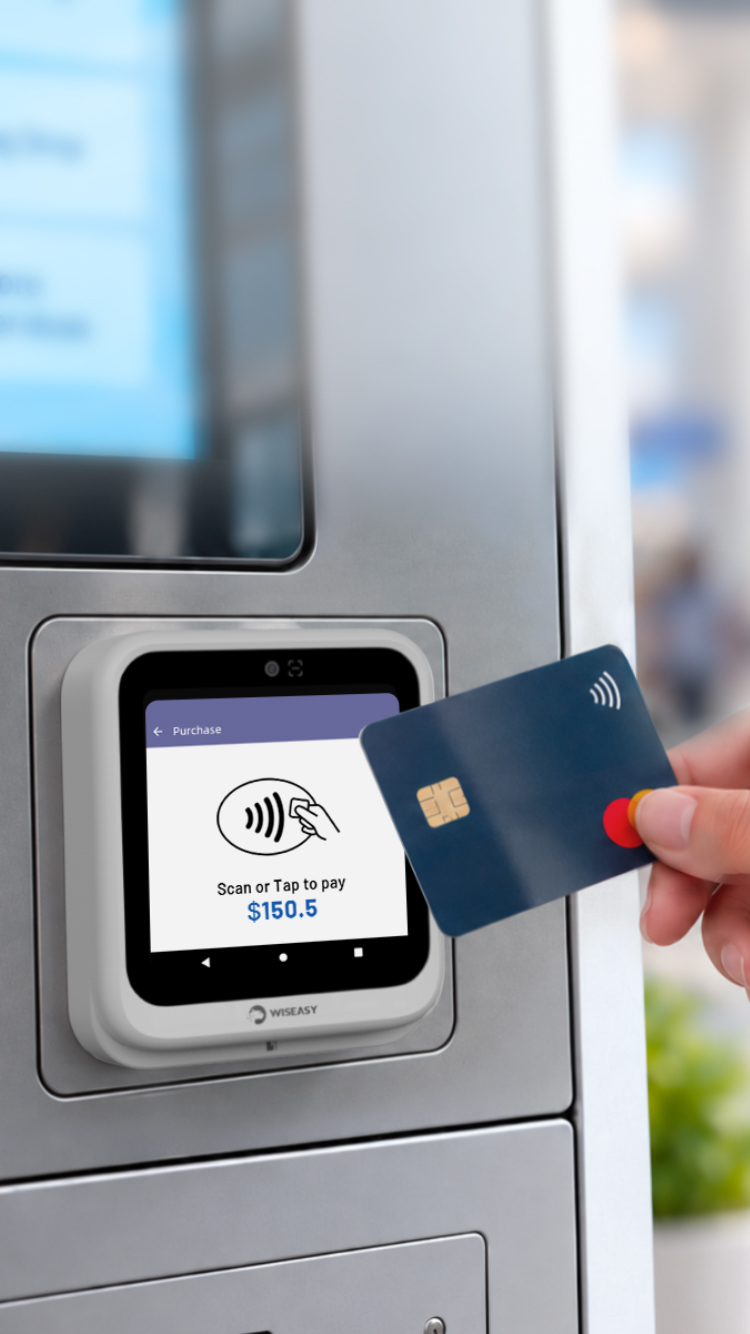

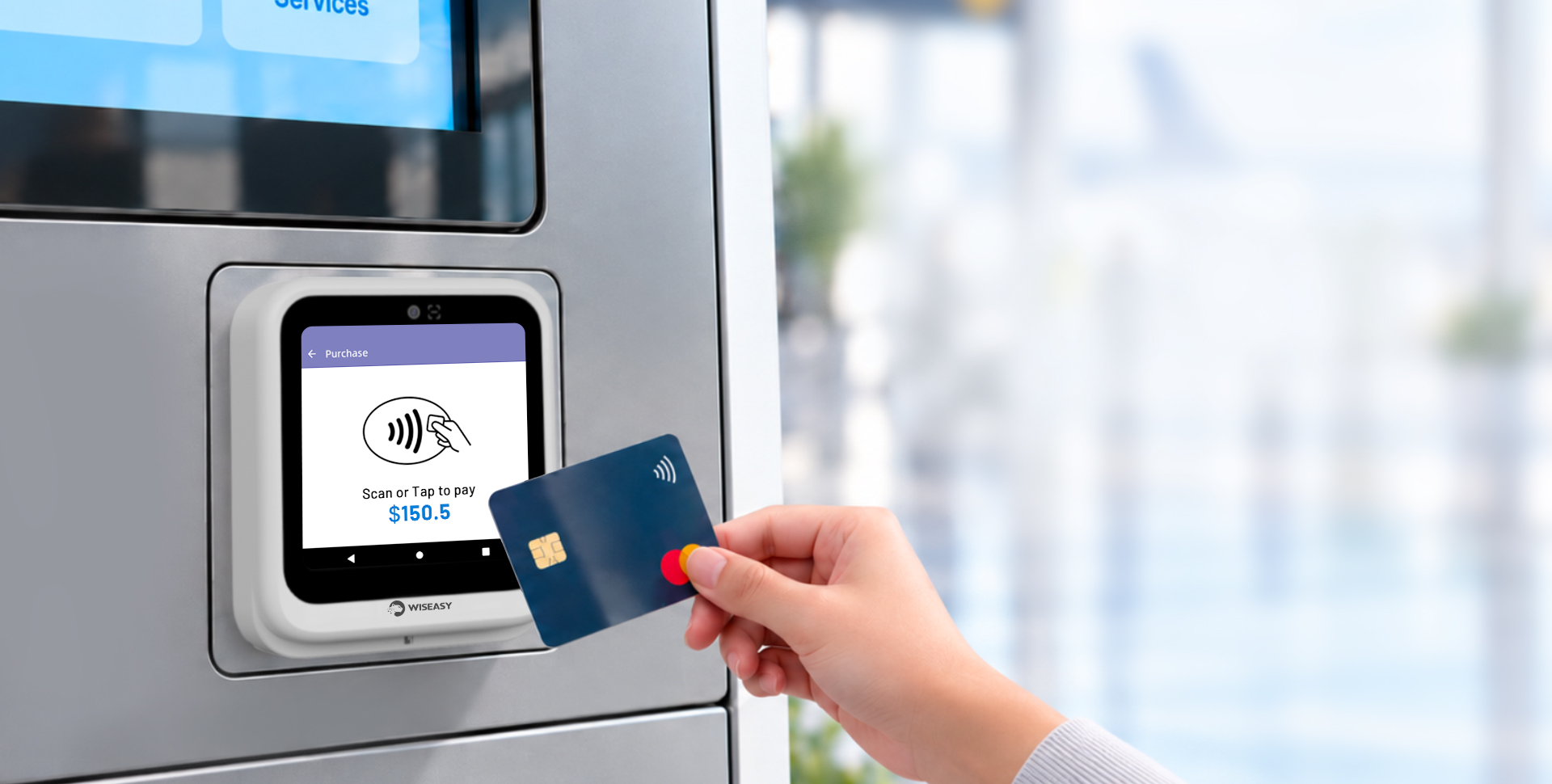

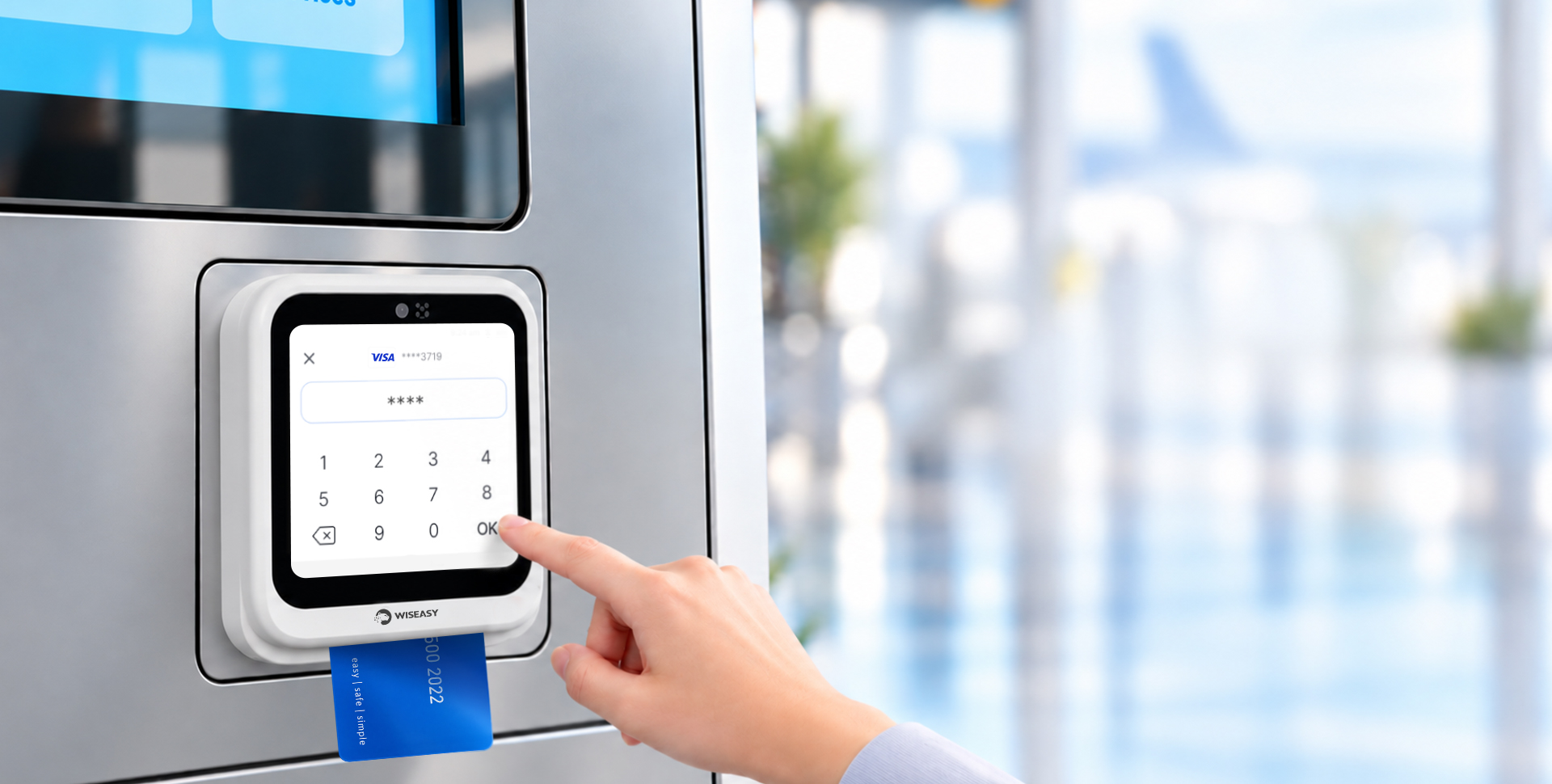

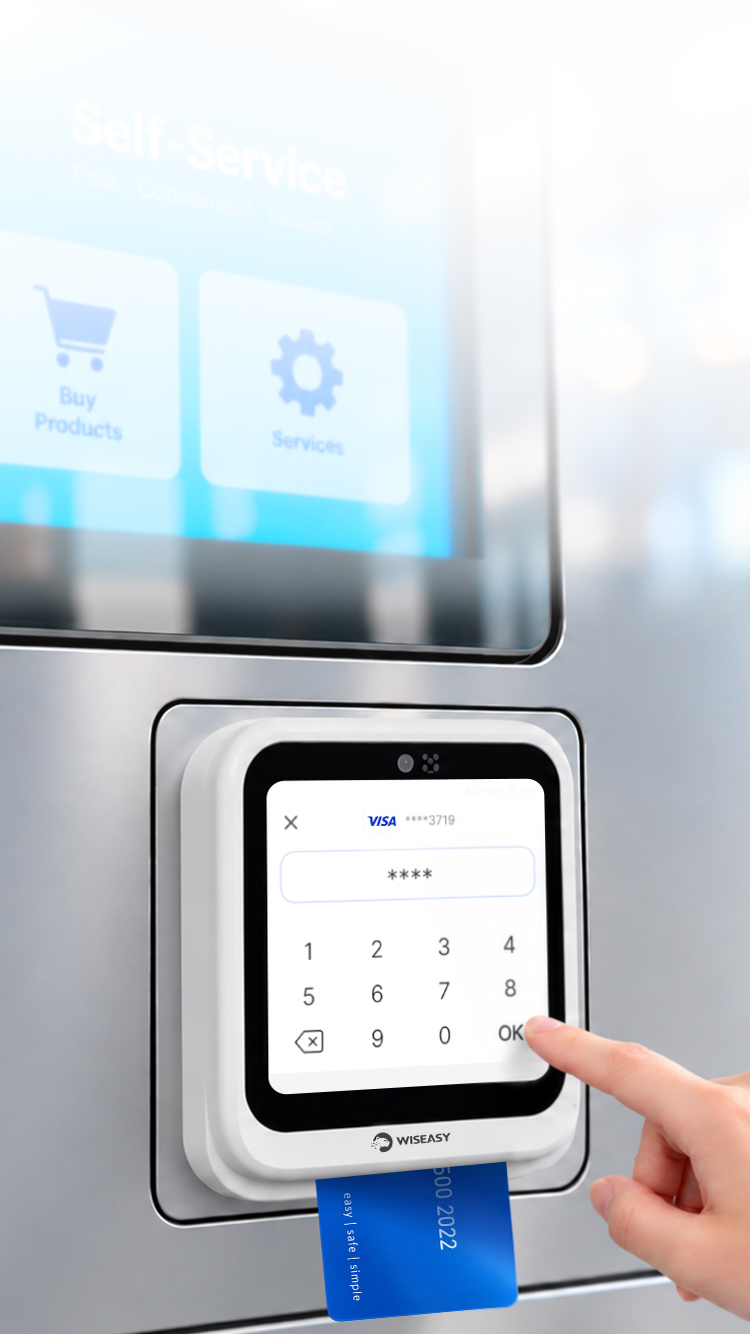

Intuitive User Interaction Intuitive User Interaction

Intuitive User Interaction

Equipped with a 4-inch touchscreen, PIN-on-Glass technology, and an integrated front camera, RX SSK provides a user-friendly interface for secure payment authentication and customer engagement—all within a compact, space-efficient design.

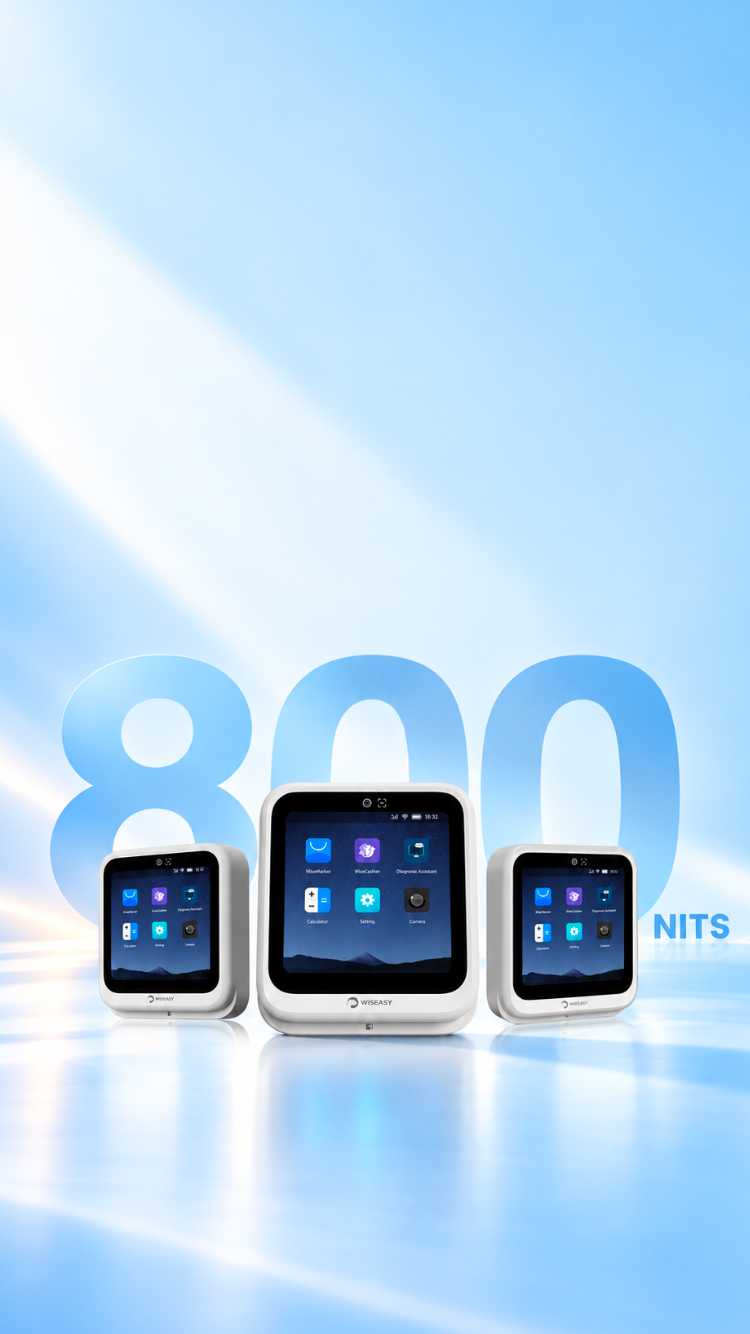

Optimized for Outdoor Visibility Optimized for Outdoor Visibility

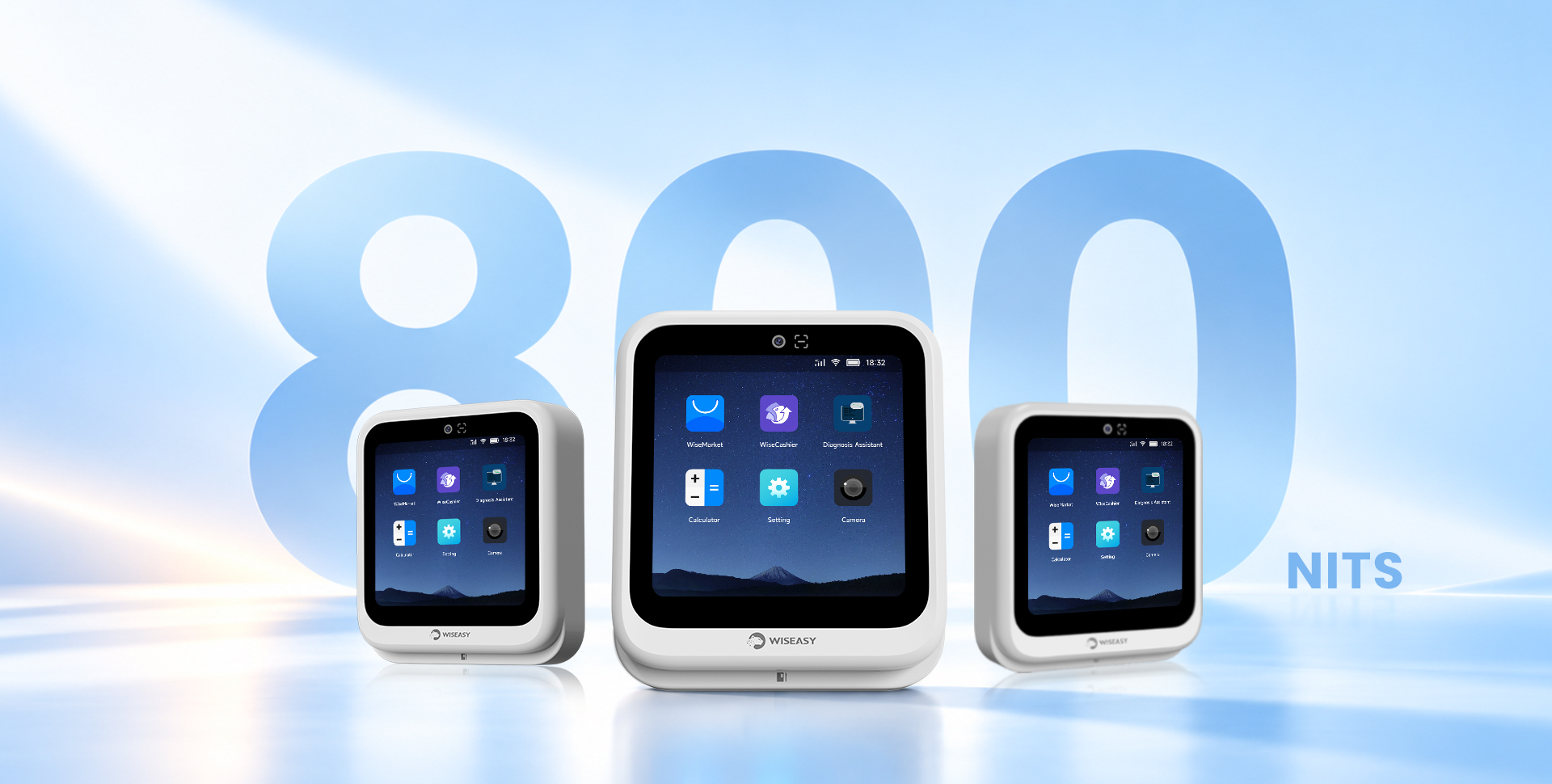

Optimized for Outdoor Visibility

The 800-nit high-brightness display ensures clear readability even under direct sunlight, enabling smooth customer interactions in outdoor and semi-outdoor environments.

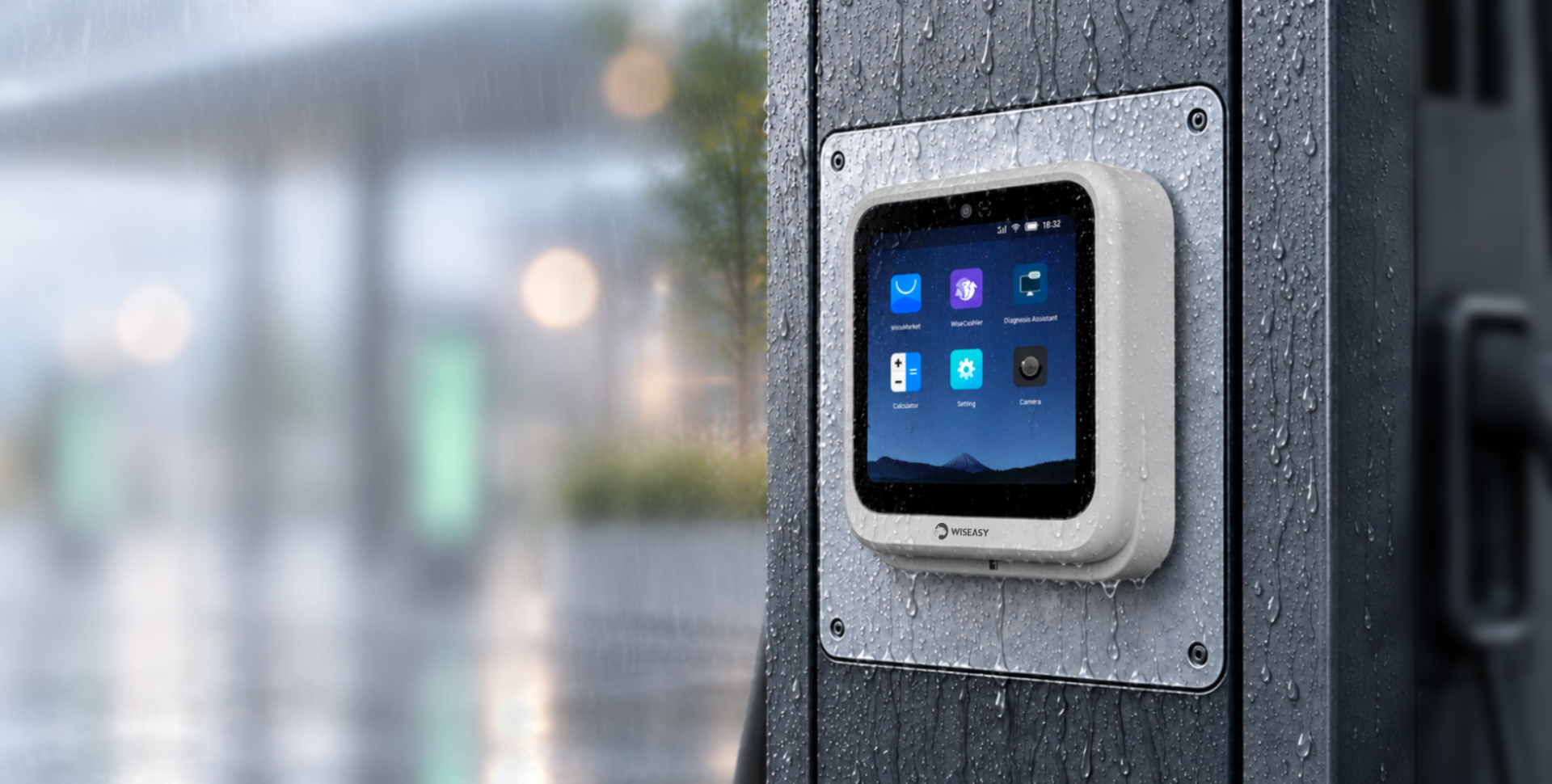

Built for Demanding Environments Built for Demanding Environments

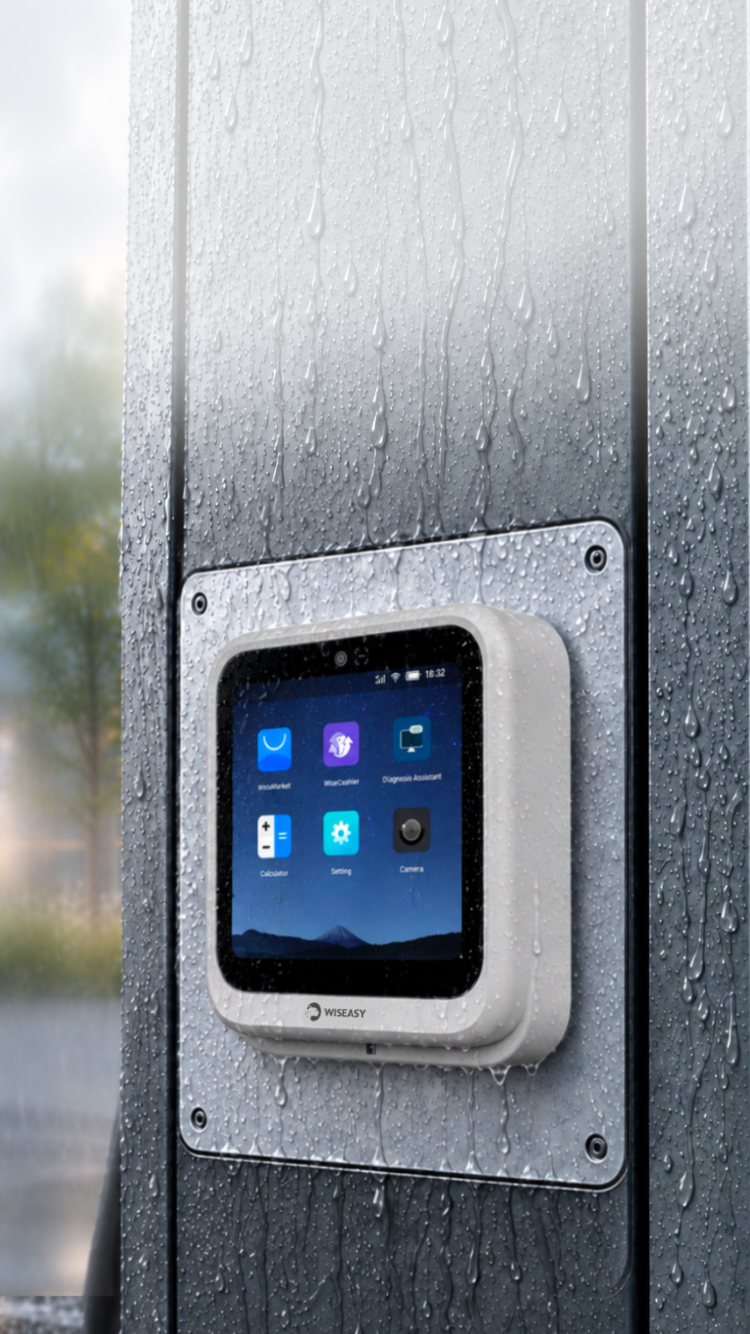

Built for Demanding Environments

Designed for unattended operations, RX SSK combines IP65-rated protection with IK09 impact resistance to withstand harsh outdoor conditions, dust, moisture, and daily wear.

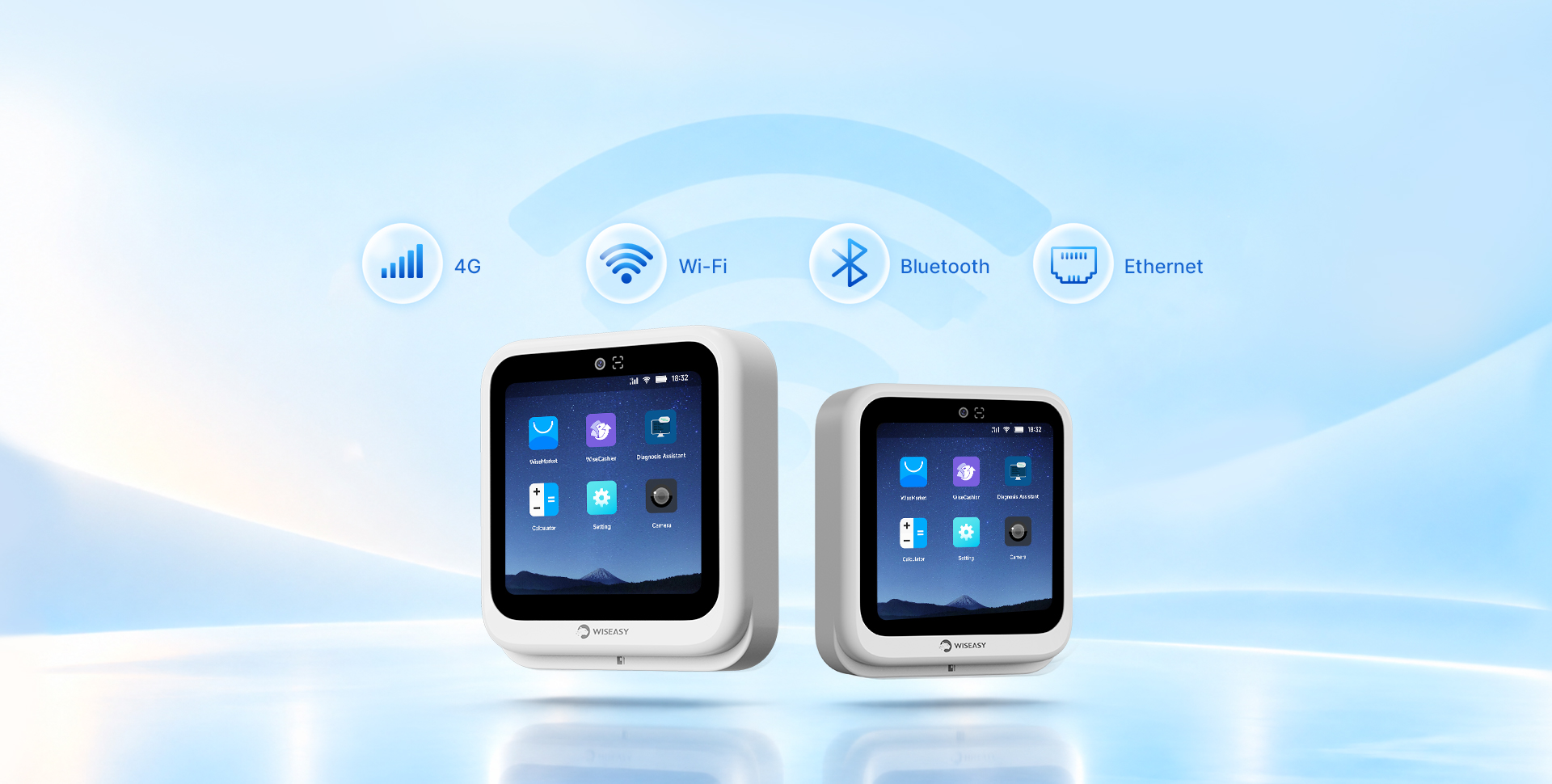

Always Connected Always Connected

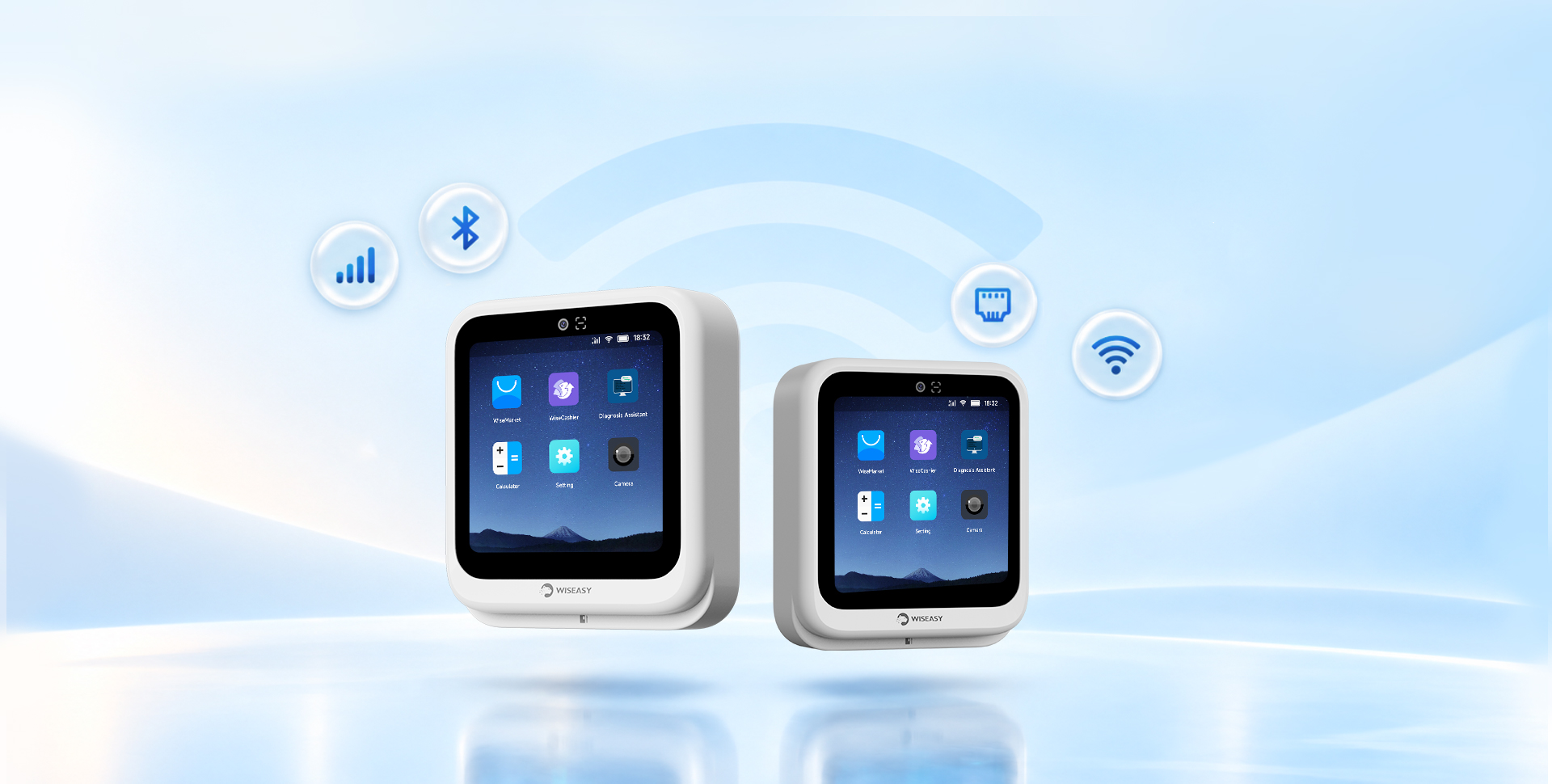

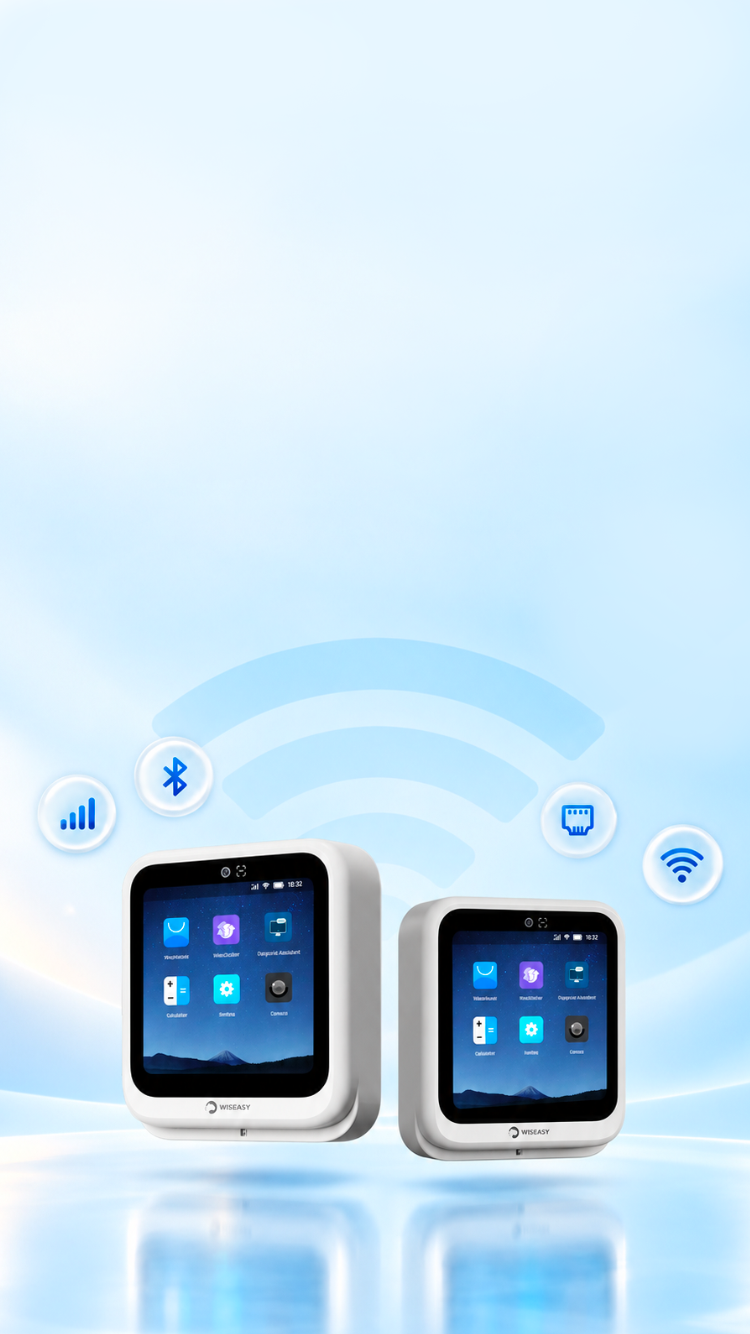

Always Connected

Comprehensive connectivity options—including 4G/3G/2G cellular networks, dual-band Wi-Fi, Bluetooth, and Ethernet—ensure stable and reliable communication across a wide range of deployment scenarios.

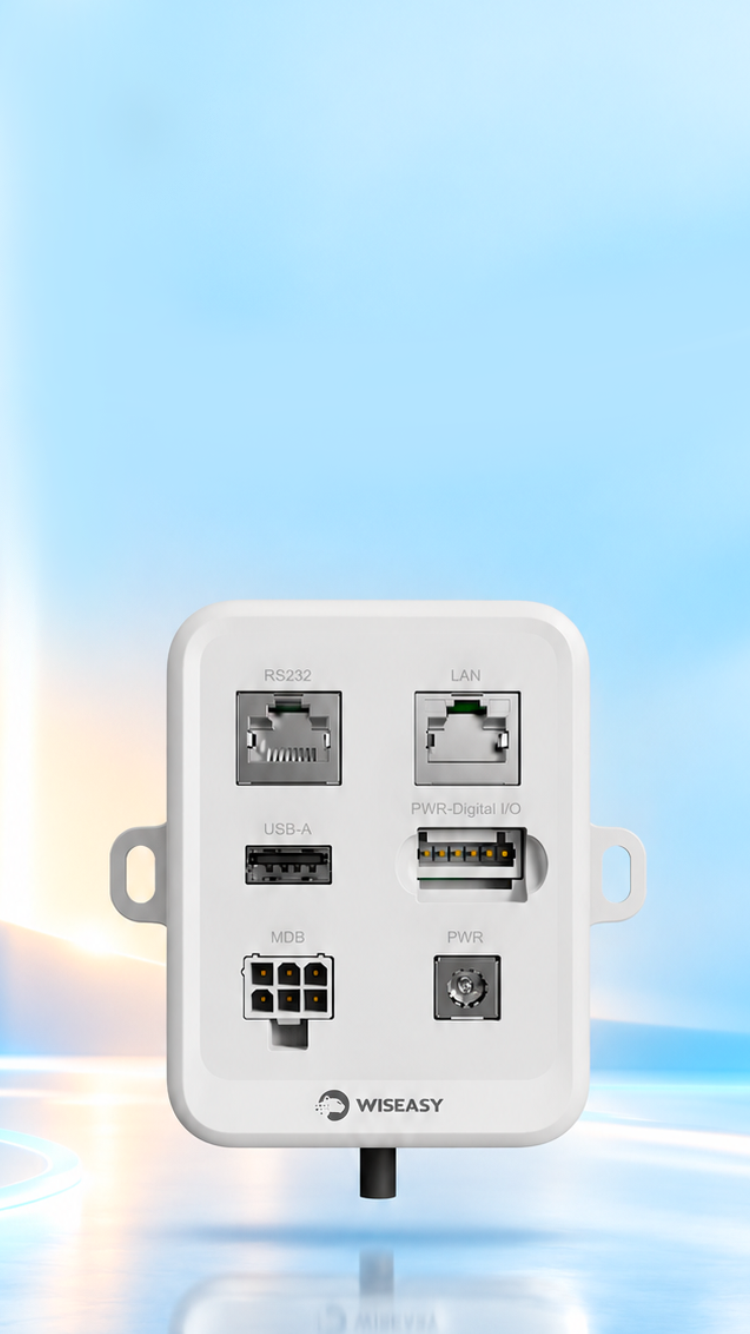

Flexible Modular Architecture Flexible Modular Architecture

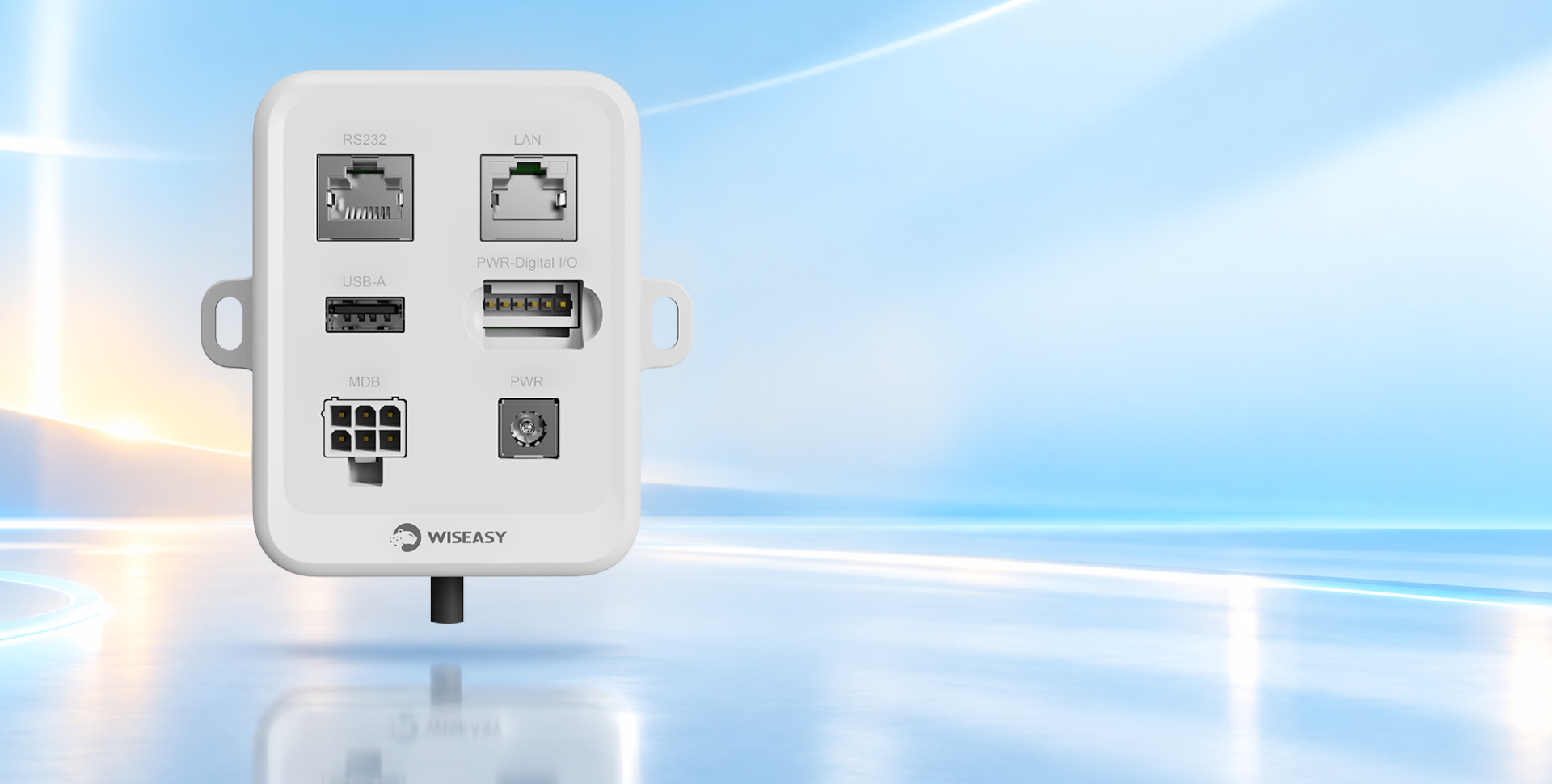

Flexible Modular Architecture

Featuring a modular terminal-plus-optional Hub design, RX SSK can be deployed as a standalone payment device or integrated into broader self-service ecosystems, adapting easily to diverse application requirements.

Ideal for Multiple Self-Service Applications

RX SSK is purpose-built for a wide range of unattended payment scenarios.

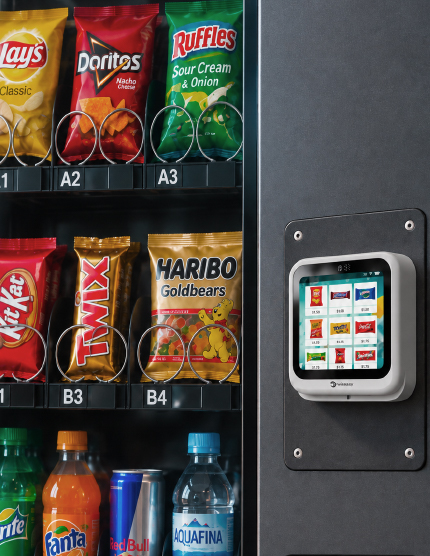

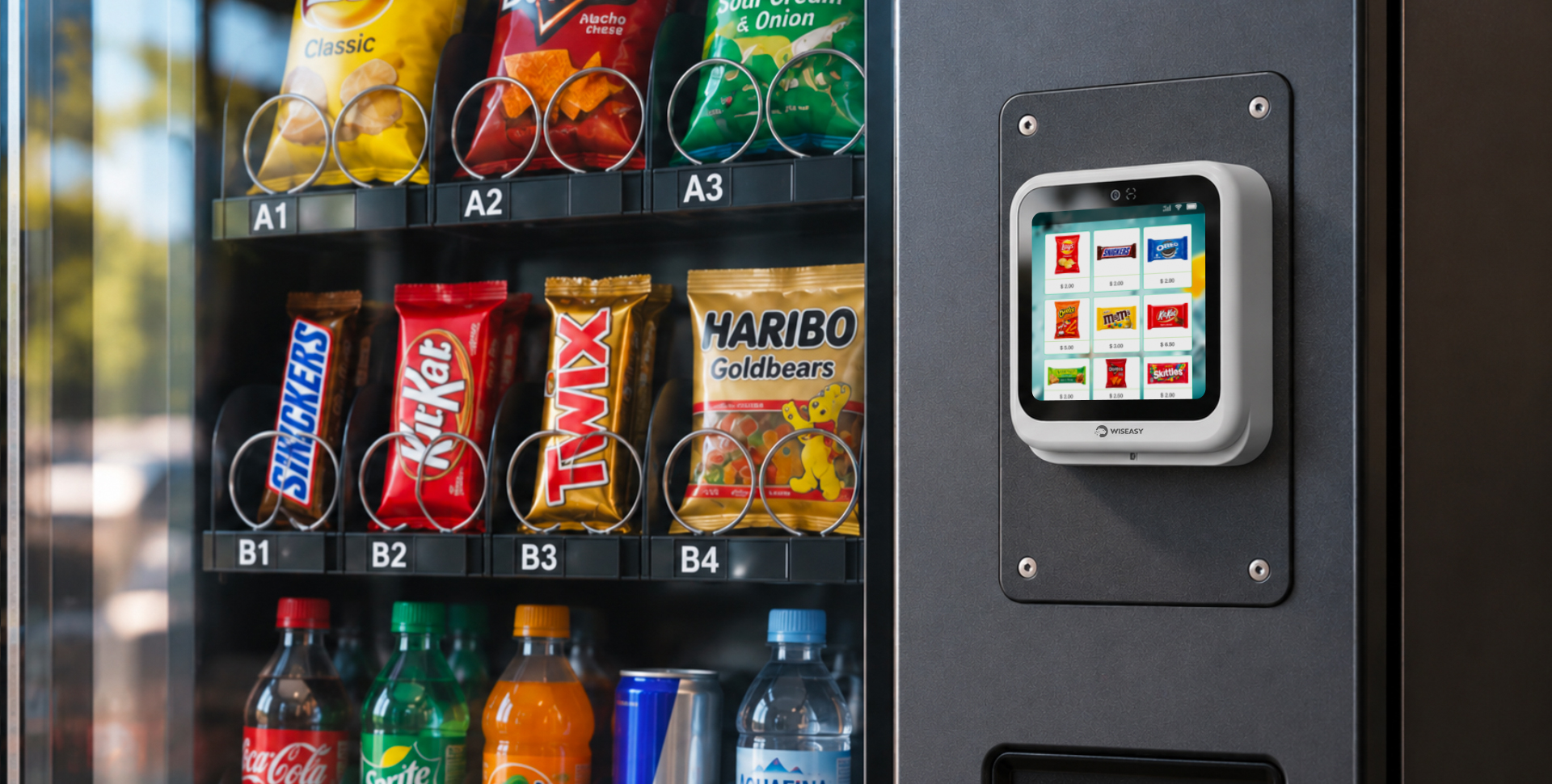

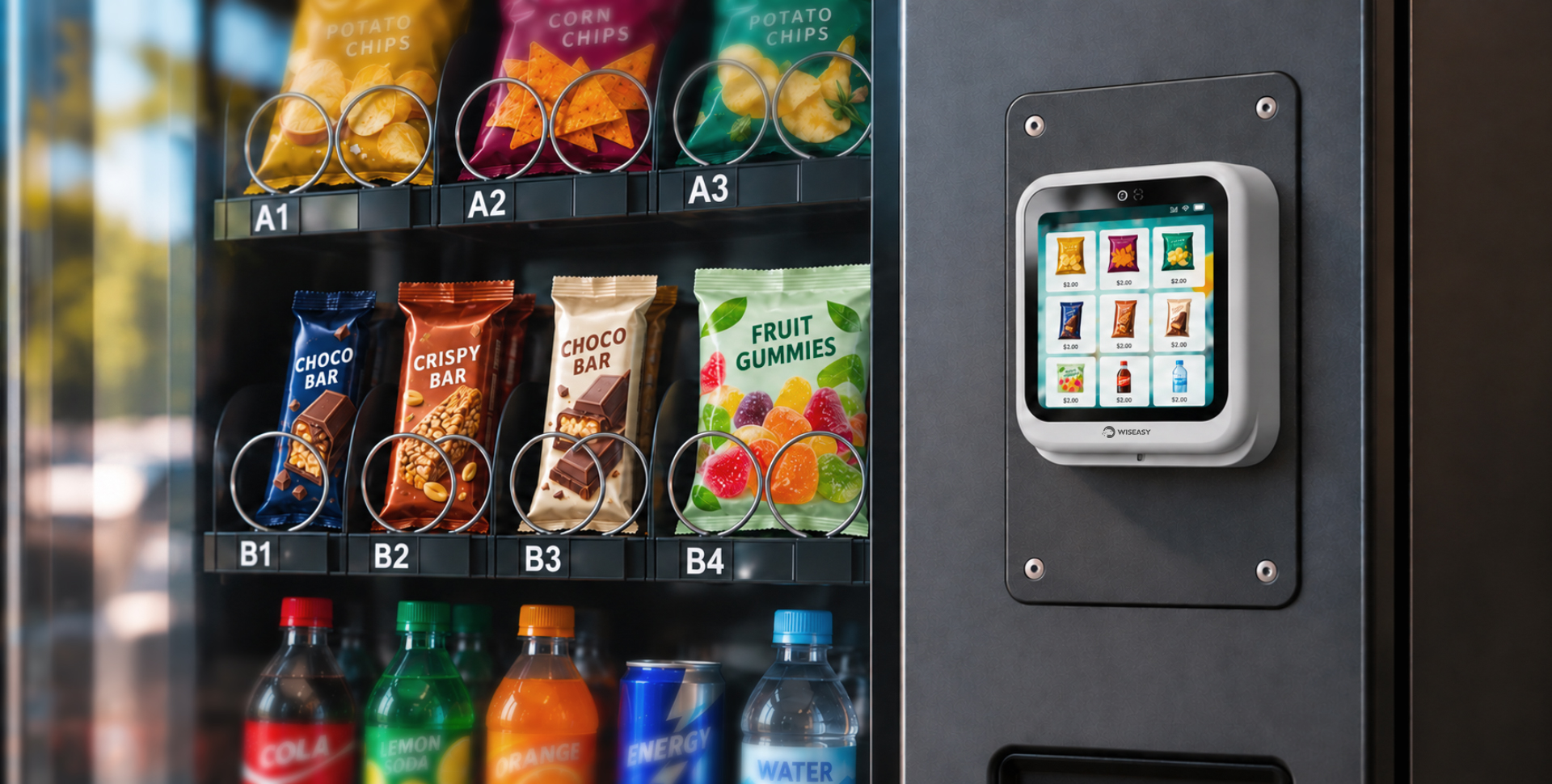

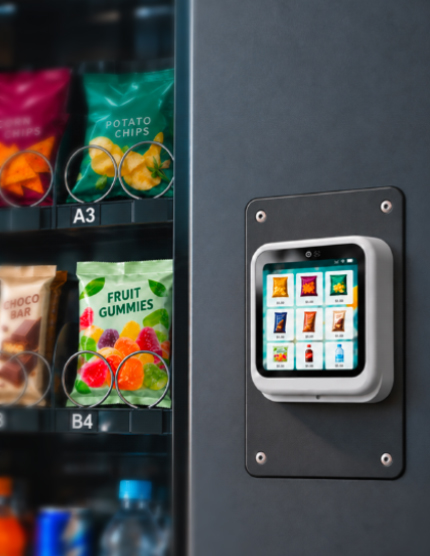

Vending Machines Vending Machines

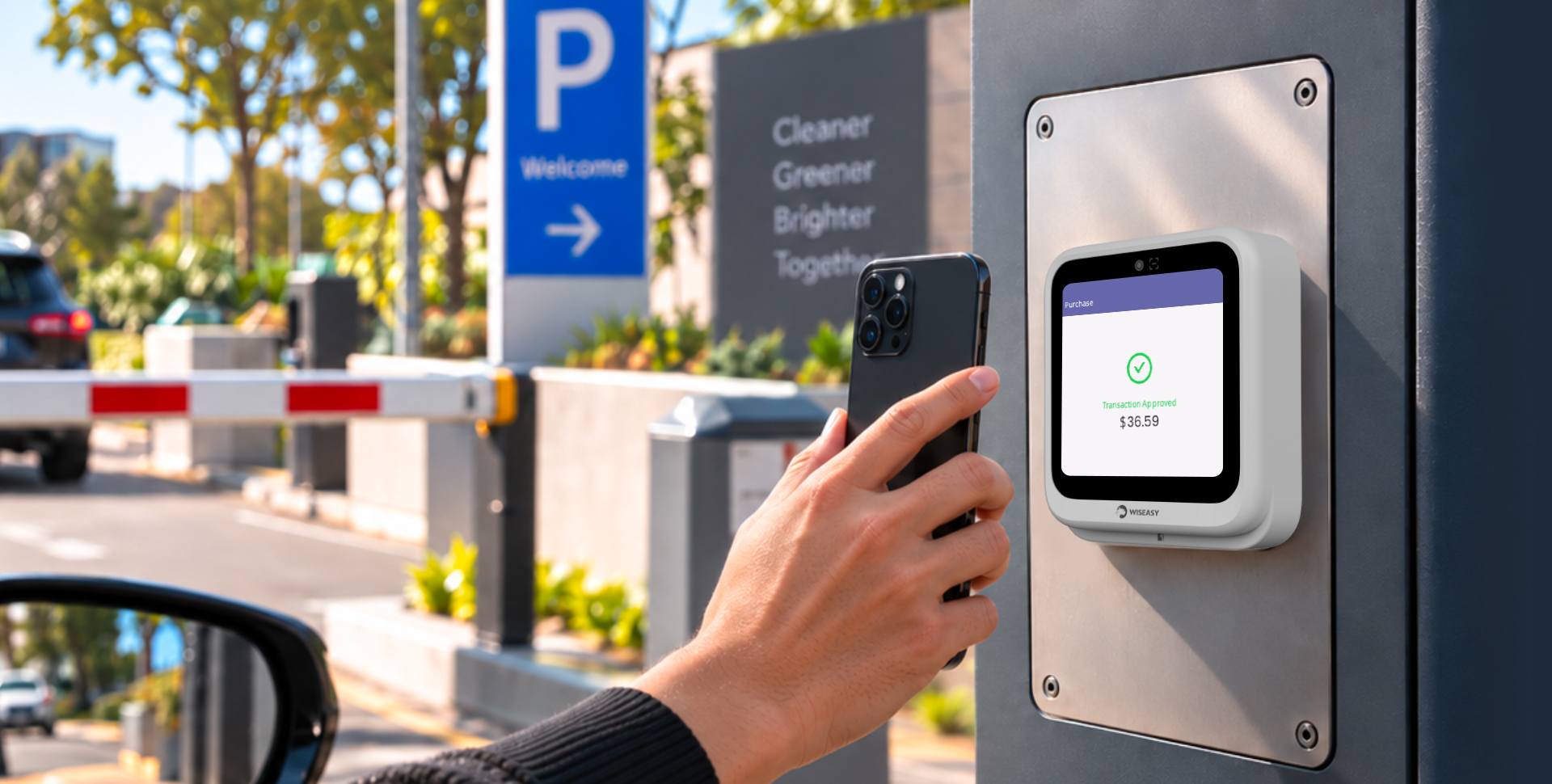

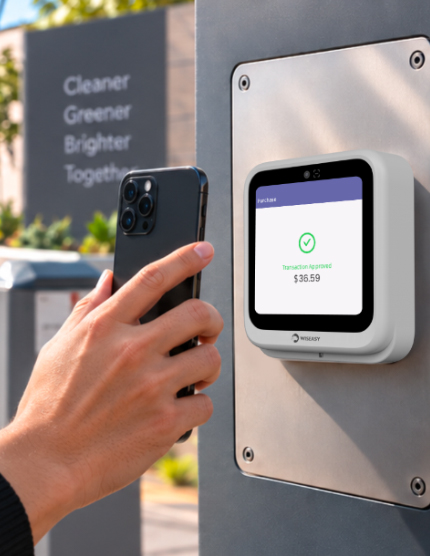

Parking Systems Parking Systems

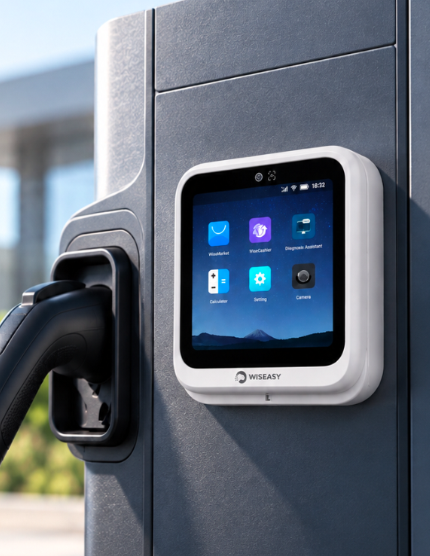

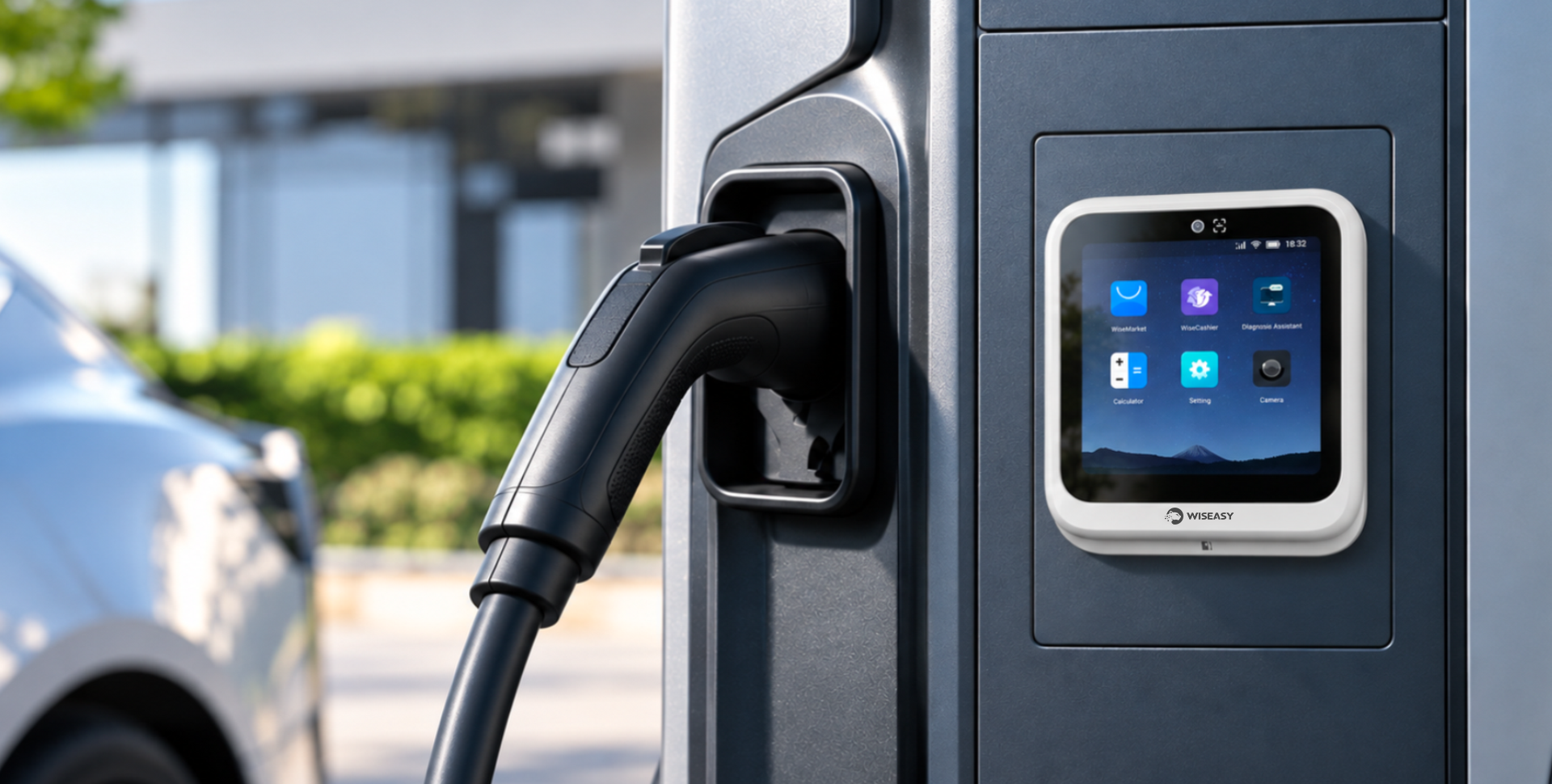

EV Chargers EV Chargers

WISEASY RX SSK Specifications

Model

Model

R010-SSK

Operating System

Operating System

Android 12

CPU

CPU

Quad Cortex-A53, 2.0GHz

Memory

Memory

2GB LPDDR4 + 32GB eMMC

Security Processor

Security Processor

MH2101

Display

Display

4-Inch, Resolution:480*480

Touch Screen

Network

Network

2G/3G/4G

Wi-Fi

Wi-Fi

2.4G/5G, IEEE802.11 a/b/g/n/ac

Bluetooth

Bluetooth

Bluetooth5.0, BLE

GPS

GPS

GPS/A-GPS, Glonass, Beidou

Camera

Camera

Front Camera: 2M FF

Audio

Audio

Speaker：1W

Mic (optional)

NFC

NFC

13.56MHz, ISO/IEC14443 TypeA&B,

Mifare S50/S70, Felica

Card Readers

Card Readers

IC Card: ISO7816

Card Slot

Card Slot

1×Micro SIM slot + 1×PSAM Slot

Antenna Port

Antenna Port

1 x SMA

Size（L*W*H）

Size（L*W*H）

113*98*39.2mm

IP Level

IP Level

IP65

Environment

Environment

Operating temperature: -10°C to 60°C

Storage temperature: -20°C to 70°C

IK Level

IK Level

IK09

Hub Peripheral Ports

Hub Peripheral Ports

MDB Slave, Pulse, 1*RS232,

1*Ethernet, 1*USB-A,

1*DC Jack, 1*USB-C

Hub Adapter

Hub Adapter

Input: AC 100-240V, 50/60Hz

Output: 12V/2A

Hub Size (L*W*H)

Hub Size (L*W*H)

90.5*88*25.8mm
